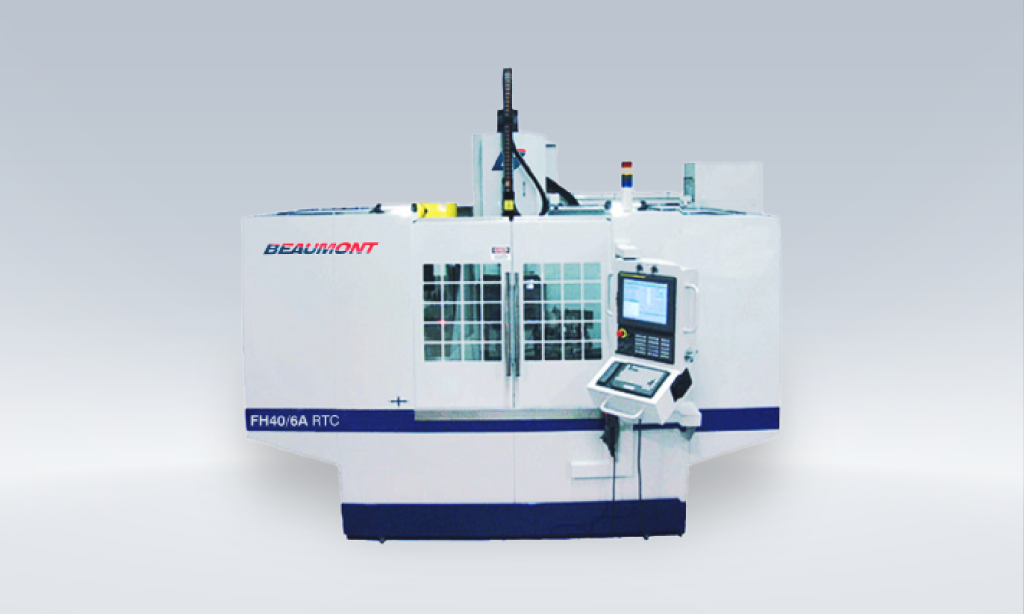

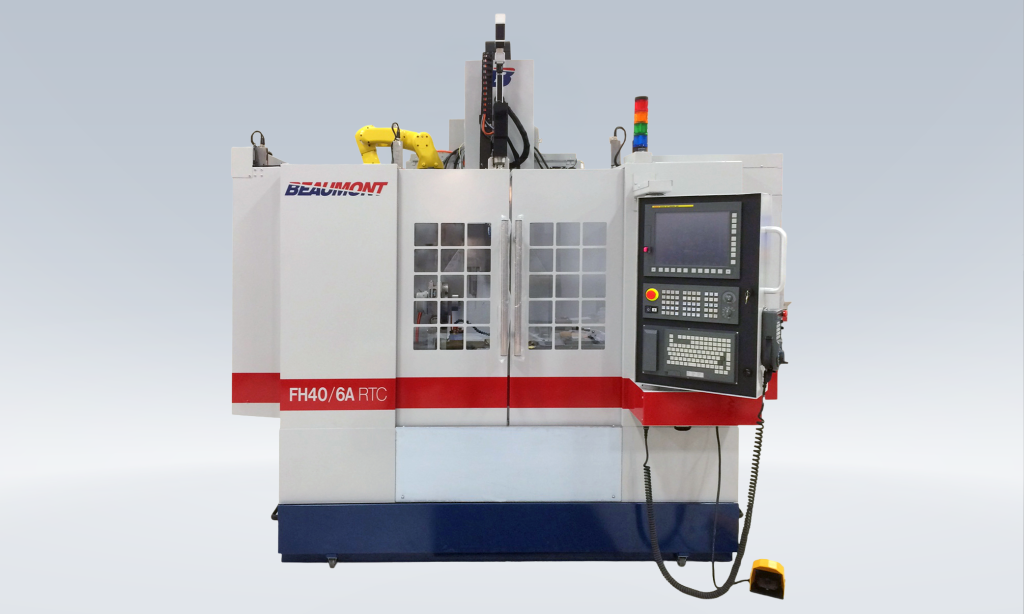

FH40 Machine

40 in. X-axis travel

Compact Footprint

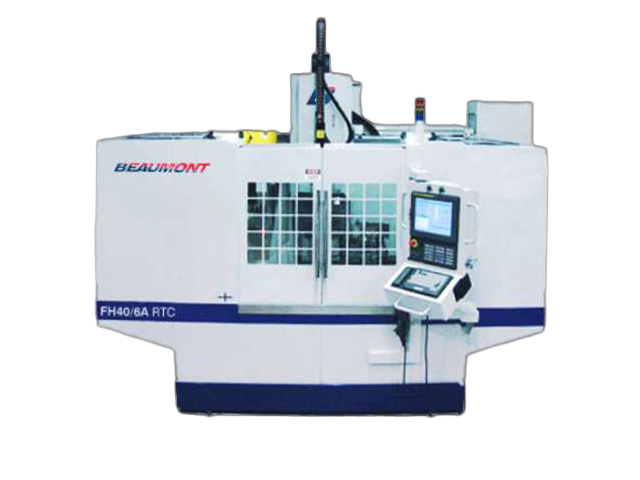

Fast Hole 40 (Fh40) Machine

Large Work Envelope For

  • BLADES
  • SEALS
  • TRANSITION DUCTS
  • VANES
  • NOZZLES
Spec Sheet
Floor Plan

Featuring

The key features of the FH40 EDM Machine are:

Micropulse Technology
Virtually Eliminates Microcracking
and Recast Layer

Breakthrough Technology
Eliminates Backstriking

Diffuser Shape Technology
The Ability to Create Shaped Holes

Aerospace

Power Gen

Semiconductors

Specifications

  • Offsite Diagnostics via analog or digital inputs
  • 32 Axis capability
  • Rotary Table Accuracy 3 to 5 arc seconds
  • Squareness .0005"
  • Electrode capability 24"
  • Electrode diameter .012" - .25"
  • Rapid Speed 400 ipm X, Y, Z; 200 ipm W
  • Absolute encoders
  • Spindle Speed 3000 RPM
  • X, Y, Z axis travel 40 x 22 x 26
  • Output of 65 continuous Amps
  • Amperage Settings 1-amp increments
  • Capacitance range 0 - 8.95
  • 150-gallon stainless DI filtration system
  • Fanuc Robotic Tool changer for auto electrode and guide changing
  • 18 tools, 6 guide changing capability - customized to 30 on request
  • Available with Siemens/Fanuc Control Package

CUSTOMIZATION OPTIONS

Beaumont Machine offers a variety of customization options for our FH series machines. To see full details of any of these options,
please visit our customization options page.

Customize Now
  • Burn Time Counter
  • Breakthrough Detection
  • Micro-Pulse Technology
  • Diffuser Shape Technology
  • Depth Finder
  • Reverse Polarity Electrode Dresser
