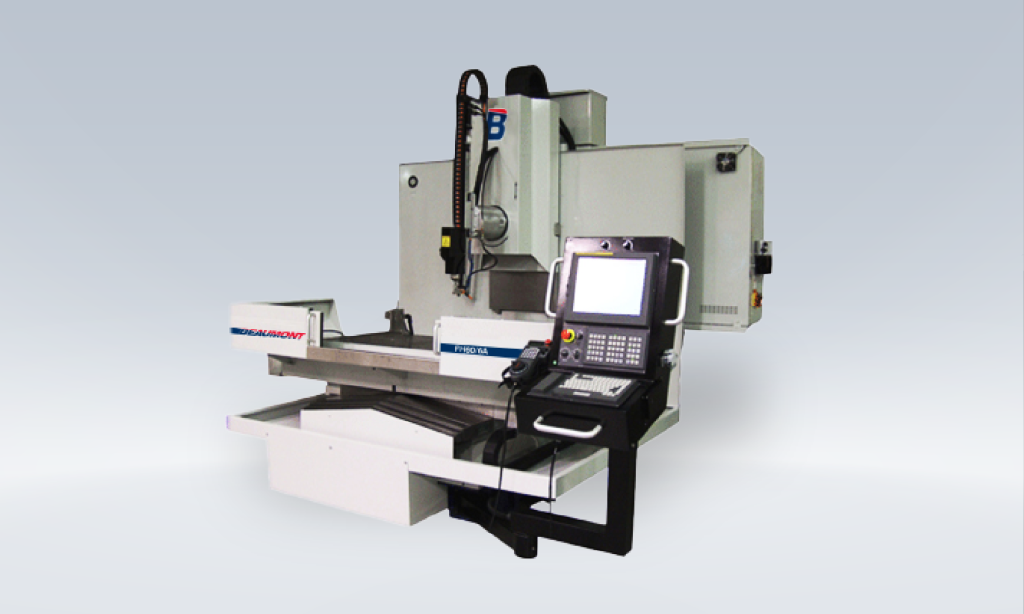

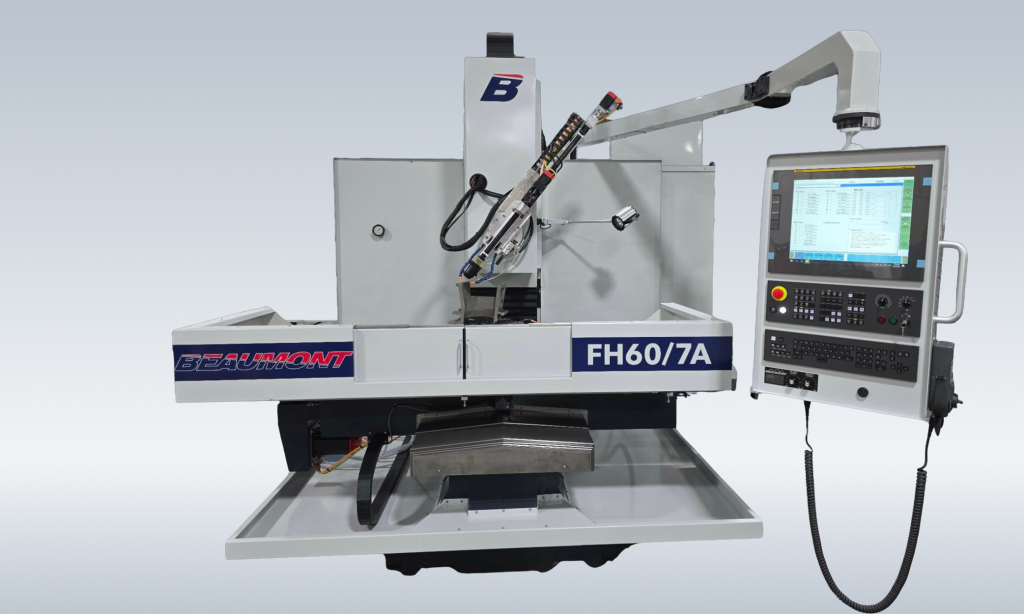

FH50/60 Machine

50/60 in. X-axis travel

Compact Footprint

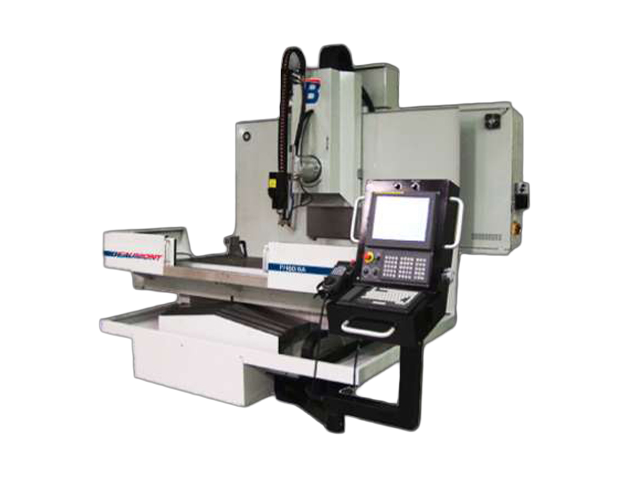

Fast hole 50/60 (Fh50/60) Machine

Large Work Envelope for

  • BLADES
  • SEALS
  • TRANSITION DUCTS
  • VANES
  • NOZZLES
Spec Sheet
Floor Plan

Featuring

Micropulse Technology
Virtually Eliminates Microcracking
and Recast Layer

Breakthrough Technology
Eliminates Backstriking

Diffuser Shape Technology
The Ability to Create Shaped Holes

Aerospace

Power Gen

Semiconductors

Specifications

  • Offsite Diagnostics via analog or digital inputs
  • 32 Axis capability
  • Rotary Table Accuracy 3 to 5 arc seconds
  • Squareness .0005"
  • Electrode capability 24"
  • Electrode diameter .012" - .25"
  • Rapid Speed 400 ipm X, Y, Z; 200 ipm W
  • Absolute encoders
  • Spindle Speed 3000 RPM
  • X, Y, Z axis travel 60 x 30 x 26
  • Output of 65 continuous Amps
  • Amperage Settings 1-amp increments
  • Capacitance range 0 - 8.95
  • 150-gallon stainless DI filtration system
  • Fanuc Robotic Tool changer for auto electrode and guide changing
  • 18 tools, 6 guide changing capability - customized to 30 on request
  • Available with Siemens/Fanuc Control Package

CUSTOMIZATION OPTIONS

Beaumont Machine offers a variety of customization options for our FH50/60 machines. To see full details of any of these options,
please visit our customization options page.

  • Burn Time Counter
  • Breakthrough Detection
  • Micro-Pulse Technology
  • Diffuser Shape Technology
  • Depth Finder
  • Reverse Polarity Electrode Dresser
